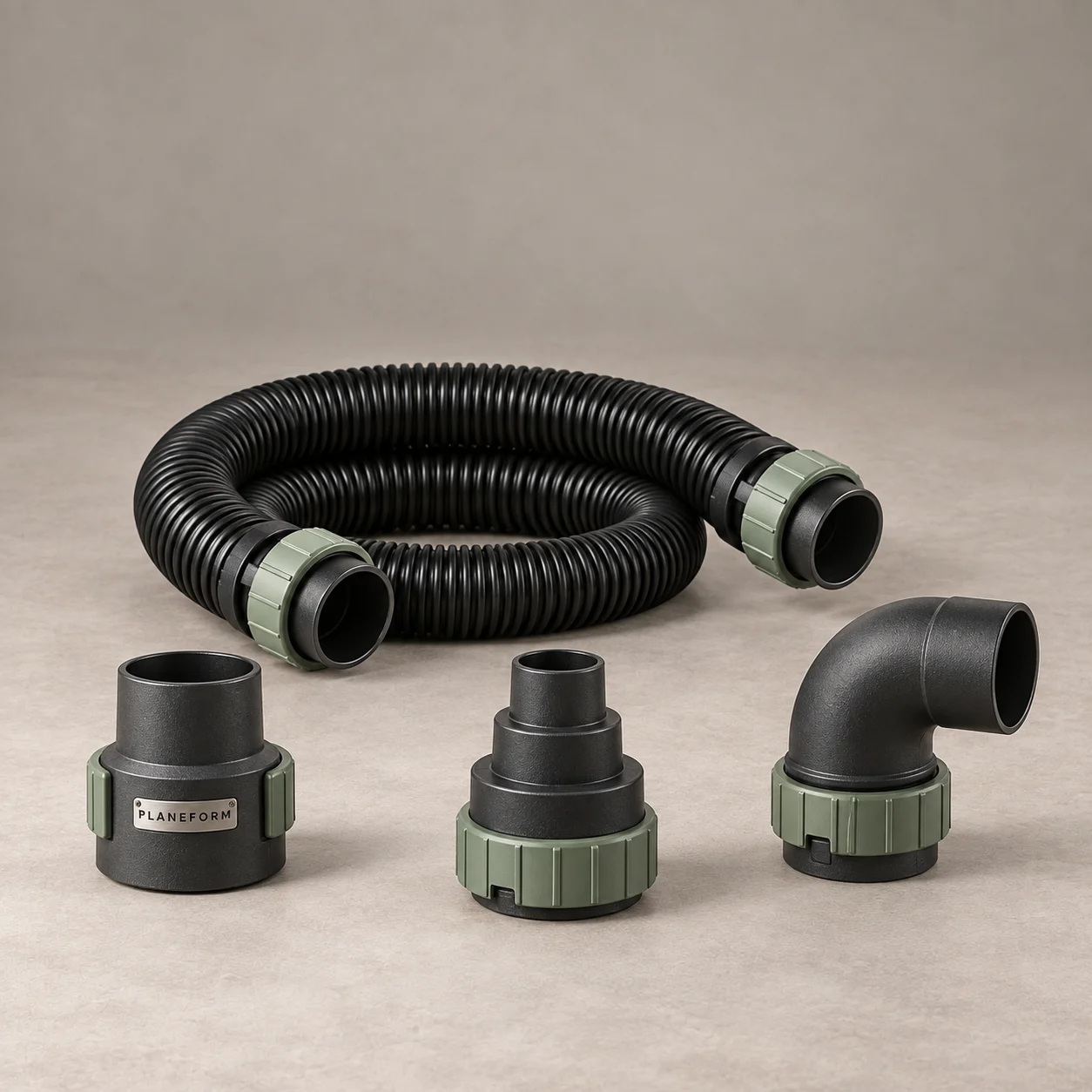

Extraction Connection Kit

Make the connection part of the equipment plan.

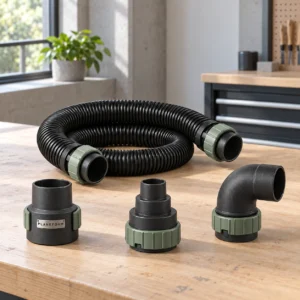

The Extraction Connection Kit gathers hose and mating components into a focused Planeform accessory direction. Stepped forms, collars and connection ends are arranged so the path between pieces can be considered clearly. The restrained mineral and basalt palette keeps the kit aligned with the wider collection while placing fitment ahead of visual similarity.

Begin at both ends of the connection. The exact machine outlet and the intended extraction hose or equipment inlet need to be identified before an adapter is selected. Perspective in an image cannot confirm a diameter, thread, seal or mating method, and this product does not represent a standalone extraction unit.

Read the connection arrangement

• Distinct mating ends. The component forms make it clear that each side of the planned connection needs to be checked.
• An organized group of pieces. Collars and adapters are presented as parts of a matched path rather than interchangeable shapes.
• A compact accessory role. The kit sits around the machine and extraction setup without replacing either one.
• Verified fitment first. Confirmed sizes, interfaces and intended use determine the correct configuration.

Measure from documented interfaces

Provide Planeform with the exact machine model, outlet information and the extraction equipment or hose details. Ask for written confirmation of the mating ends, nominal and actual connection dimensions where relevant, attachment method and any adapter sequence. Use manufacturer documentation or a verified measurement rather than estimating from the gallery.

Confirm the contents of the kit

Request an itemized list of adapters, collars, hose sections, clamps, seals and instructions included in the proposed package. The presence of several components in a gallery view does not confirm their quantity or inclusion, and surrounding equipment is shown only to explain context.

Complete the matched arrangement

Choose the grinder, edge machine or detail tool first, then review its shroud and documented extraction point. Confirm the separate extraction equipment independently. Contact Planeform with information from both sides of the connection so the accessory arrangement can be reviewed before ordering.
